In the realm of advanced metallurgical coatings, the Galvalume (often branded as Aluzinc or Zincalume) steel coil represents a breakthrough in anti-corrosion technology. For architectural engineers, HVAC fabricators, and metal roofing manufacturers, Galvalume offers a service life that is structurally proven to be 2 to 6 times longer than standard Hot-Dip Galvanized (HDG) steel under identical environmental conditions. The secret lies in its precisely engineered ternary alloy coating.
1. The Ternary Alloy: Microstructure and Dual Protection

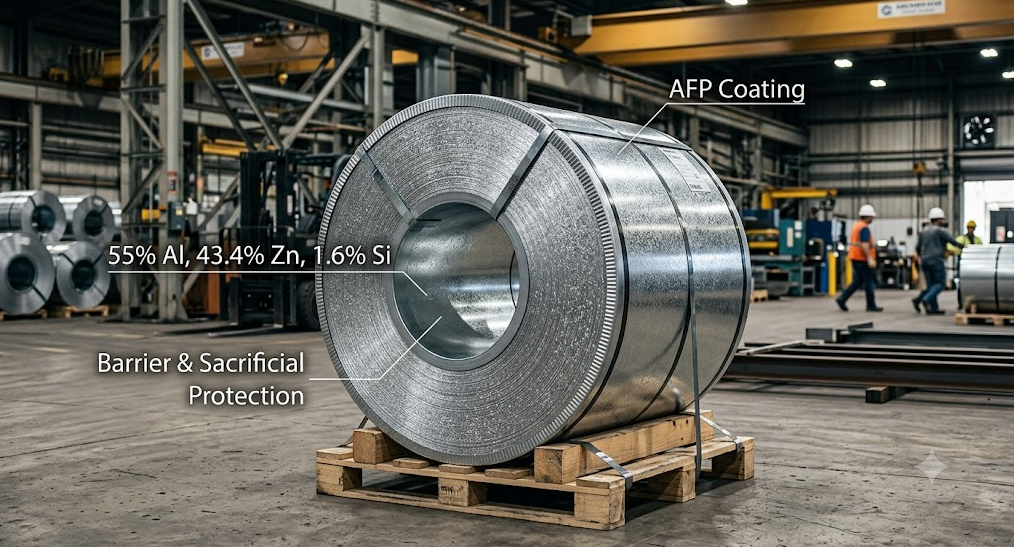

The defining characteristic of a Galvalume coil is its coating composition: 55% Aluminum, 43.4% Zinc, and 1.6% Silicon (by weight). When this molten alloy solidifies on the steel substrate, it forms a unique dendritic microstructure that provides a dual-action defense mechanism:
- Barrier Protection (The Aluminum Network): As the coating cools, aluminum-rich areas solidify first, creating an interlocking network of dendrites. This aluminum matrix acts as an impenetrable physical barrier against moisture and atmospheric corrosives, fundamentally slowing down the oxidation rate.
- Sacrificial Protection (The Zinc Interstices): The zinc-rich phases solidify in the spaces (interdendritic network) between the aluminum. If the steel is exposed through scratching or shearing at the cut edges, the zinc acts as a sacrificial anode, corroding preferentially to protect the underlying carbon steel base.
2. The Critical Role of 1.6% Silicon in Formability
A common technical question is why Silicon is included in the alloy mix. When carbon steel is dipped into a molten Aluminum-Zinc bath at extremely high temperatures (around 600°C), an exothermic reaction occurs that naturally forms a brittle iron-aluminum intermetallic alloy layer at the interface.
The precise addition of 1.6% Silicon acts as a powerful inhibitor. It drastically suppresses the growth of this brittle interfacial layer. As a result, the coating maintains excellent adhesion and flexibility, allowing the Galvalume sheet to undergo severe cold roll-forming (such as deep drawing or trapezoidal stamping) without the coating peeling, flaking, or micro-cracking.
3. High-Temperature Oxidation Resistance
Galvalume coils exhibit extraordinary thermal stability compared to standard galvanized steel. While pure zinc coatings begin to degrade and discolor at sustained temperatures above 230°C, the high aluminum content in Galvalume allows it to withstand continuous heat exposure up to 315°C (600°F) without discoloration or high-temperature oxidation.
This thermal resilience makes bare Galvalume the premier choice for internal HVAC ductwork, automotive exhaust heat shields, and industrial oven linings. Furthermore, its high Solar Reflectance Index (SRI) efficiently reflects thermal radiation, reducing the cooling load of buildings when used as unpainted roofing.
4. AFP (Anti-Fingerprint) and Passivation Treatments
To enhance the performance of bare Galvalume during processing and transit, high-quality coils are treated with a specialized surface passivation and an Anti-Fingerprint (AFP) resin coating.
- The AFP Layer: This ultra-thin (usually 1-2 microns) organic clear coat prevents sweat and oils from factory workers’ hands from chemically reacting with the active aluminum-zinc surface, which would otherwise cause dark oxidation stains.
- Roll-Forming Lubrication: The AFP resin also acts as a dry lubricant during the roll-forming process, reducing the friction between the steel and the machine rollers, thereby extending tool life and ensuring a pristine final product.
At SDY Steel Manufacturer, our 55% Al-Zn Galvalume coils are produced under strict metallurgical controls, ensuring uniform spangle formation and precise coating weights (from AZ30 to AZ150). Whether you need AFP-treated coils for architectural cladding or deep-drawing grades for appliance manufacturing, we provide the technical data and reliable quality your supply chain demands. Contact our metallurgy team today for customized AZ coating specifications.
